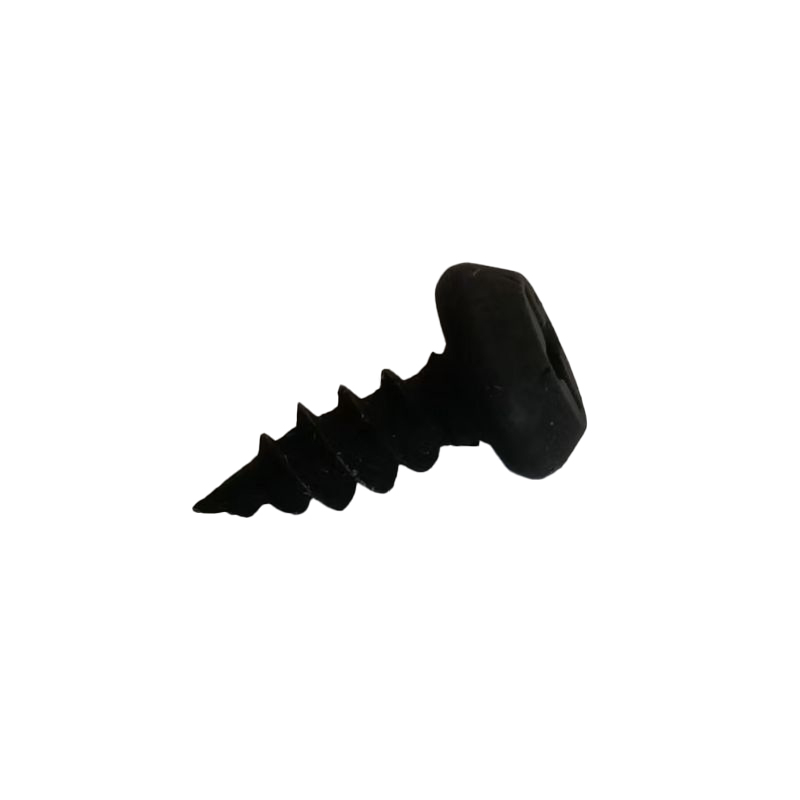

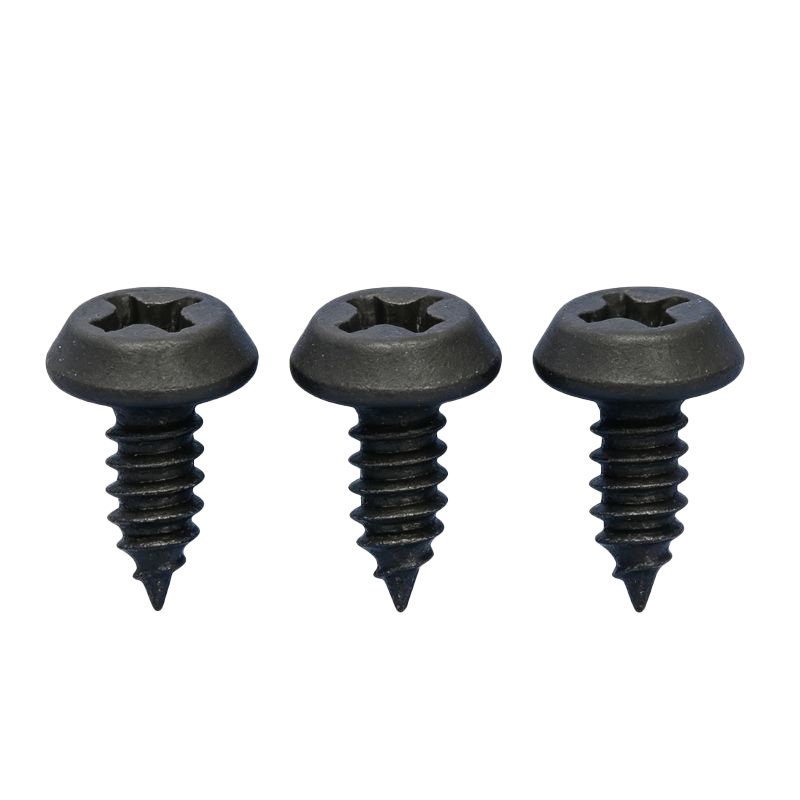

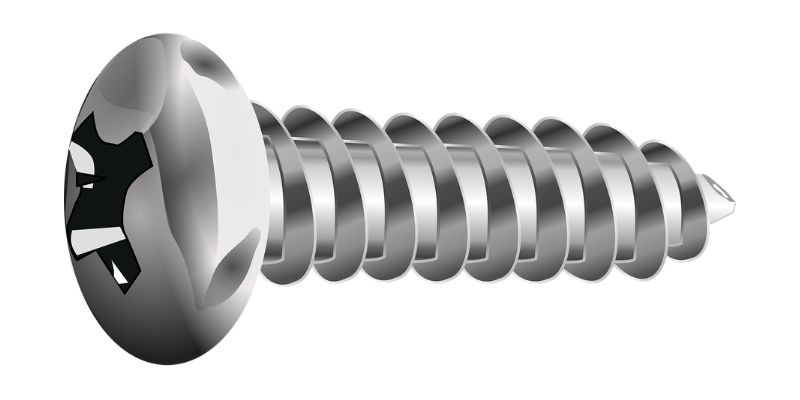

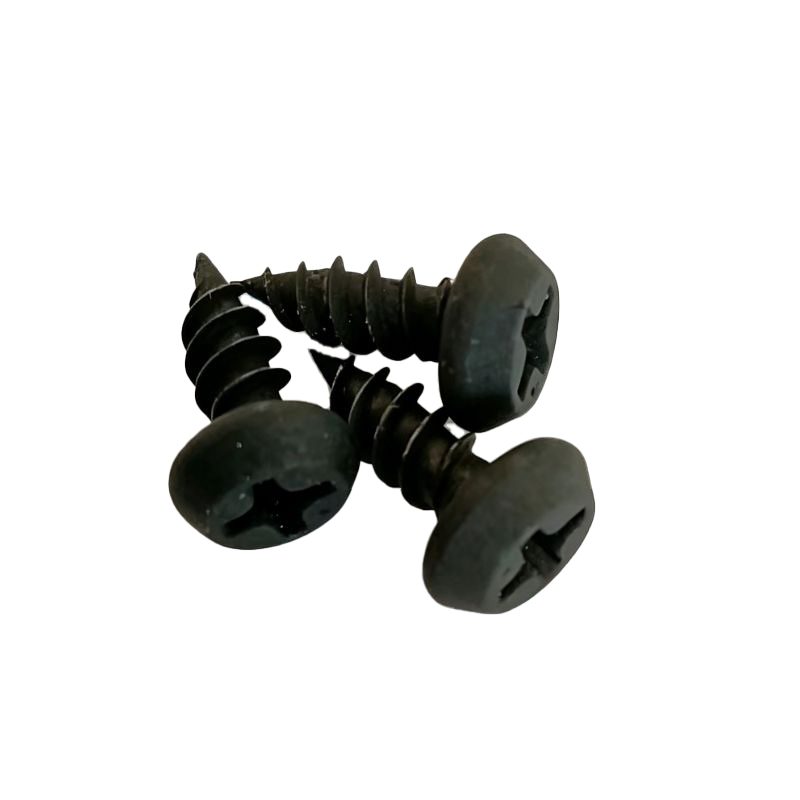

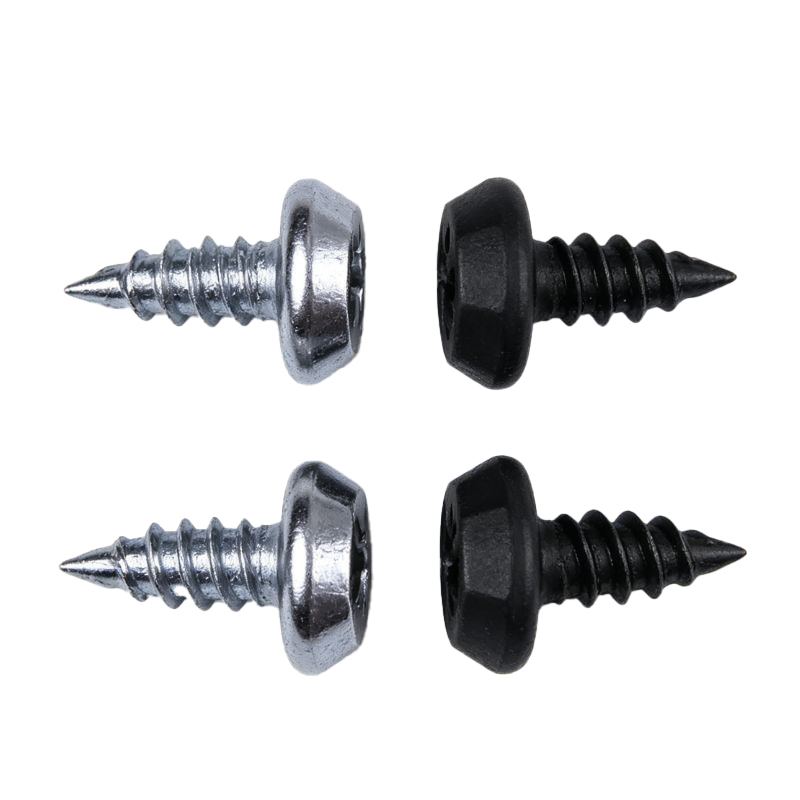

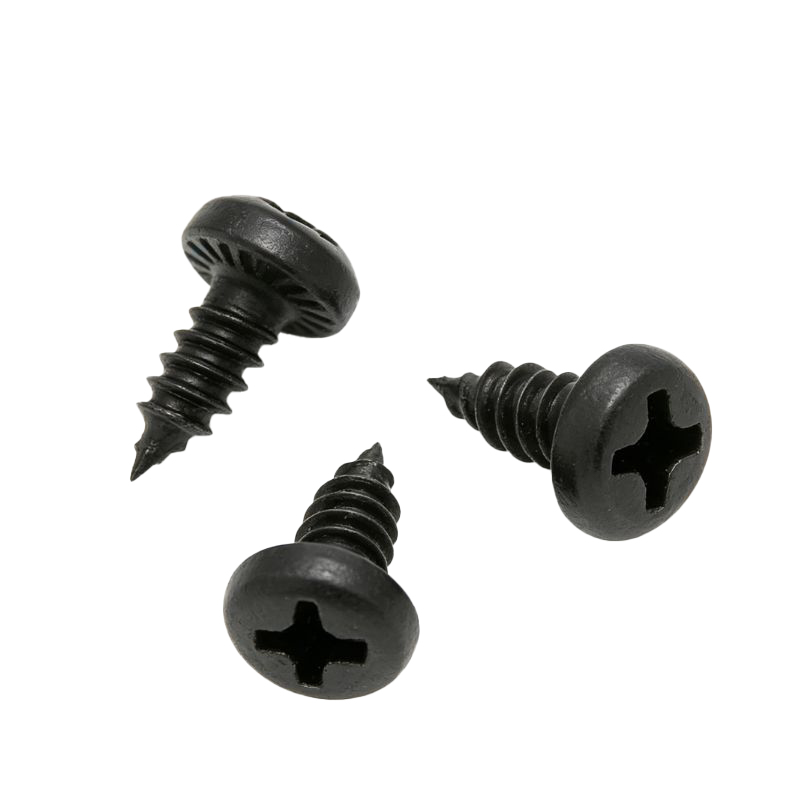

Our Phillips pan head framing screws cut their own mating thread as they drive - no pilot hole needed in wood, thin metals, plastics, or drywall. One motion, one tool. Typical labor savings can reach 50%. In our factory tests on 18-gauge steel studs, these screws drove cleanly without pre-drilling over 5,000 cycles.
More metal mass = higher torque transmission without stripping. Flat underside prevents sinking into soft materials. Phillips recess ensures positive bit engagement, minimizing slippage during high-speed driving.
Our pan framing head self tapping screws sizes range from #5 to #14 (ST2.9-ST6.3), lengths 9-150mm. Ideal for light-gauge steel studs (25-16 ga), wood-to-metal, HVAC, drywall to steel - consistent thread bite and pull-out resistance.
Surface: HRC 52-58 (case-hardened). Core: HRC 28-38. Penetrates hard substrates without stripping, yet resists brittle fracture under shear/tensile loads.
Complete pan framing head self tapping screws sizes chart - including head dimensions, thread pitch, and length options.
| Thread Size (ST) | Thread Pitch (p) | Head Dia. (dk) max | Head Height (k) max | Core Dia. (d1) min | Length Range (L) |
|---|---|---|---|---|---|
| ST2.9 (#5) | 0.8 mm | 5.6 mm | 2.4 mm | 2.08 mm | 6.5 – 25 mm |
| ST3.5 (#6) | 1.3 mm | 7.0 mm | 2.6 mm | 2.51 mm | 6.5 – 50 mm |
| ST3.9 (#7) | 1.3 mm | 8.0 mm | 3.1 mm | 2.95 mm | 6.5 – 65 mm |
| ST4.2 (#8) | 1.4 mm | 8.0 mm | 3.1 mm | 2.95 mm | 9.5 – 75 mm |
| ST4.8 (#10) | 1.6 mm | 9.5 mm | 3.7 mm | 3.43 mm | 9.5 – 75 mm |
| ST5.5 (#12) | 1.8 mm | 11.0 mm | 4.0 mm | 3.99 mm | 9.5 – 85 mm |
| ST6.3 (#14) | 1.8 mm | 12.0 mm | 4.6 mm | 4.70 mm | 13.0 – 150 mm |
Custom Sizes Available: OEM/ODM orders accepted. Lengths, head markings, and packaging configurations can be customized to your specifications.
| Substrate Type | Recommended RPM | Pilot Hole Recommendation |
|---|---|---|
| Softwood / Plywood | 800–1,200 RPM | Not required |
| Hardwood | 600–800 RPM | Pilot hole recommended for diameters > ST4.8 |
| Thin-gauge steel (≤ 1.5mm) | 1,000–1,500 RPM | Not required |
| Plastic | 500–800 RPM | Pilot hole recommended to prevent boss cracking |
| Drywall | 1,200–1,800 RPM | Not required |
Our pan framing head self tapping screws are compatible with a range of tools to suit different project scales and requirements:
