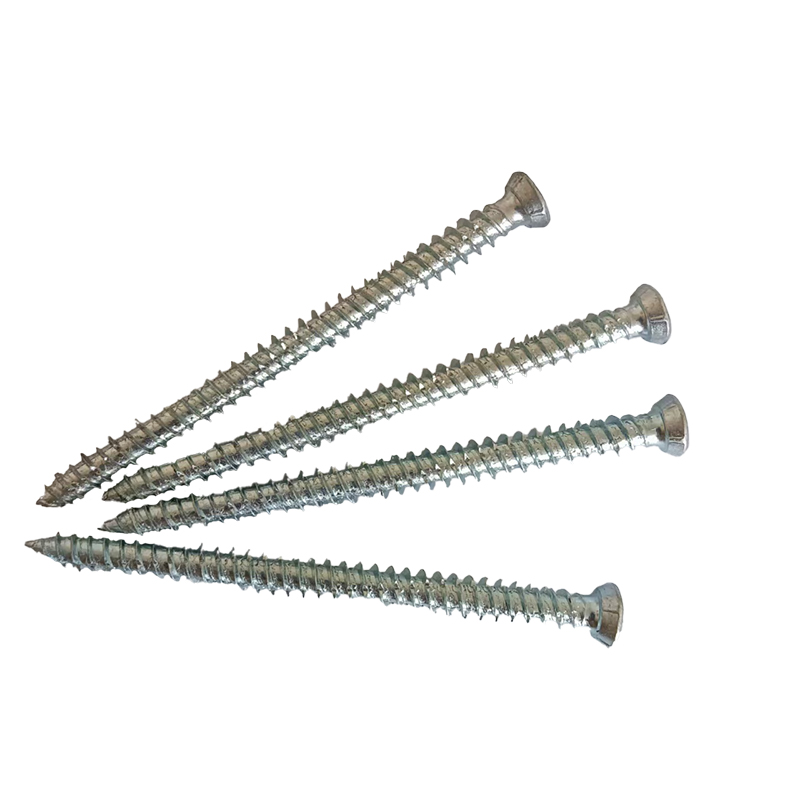

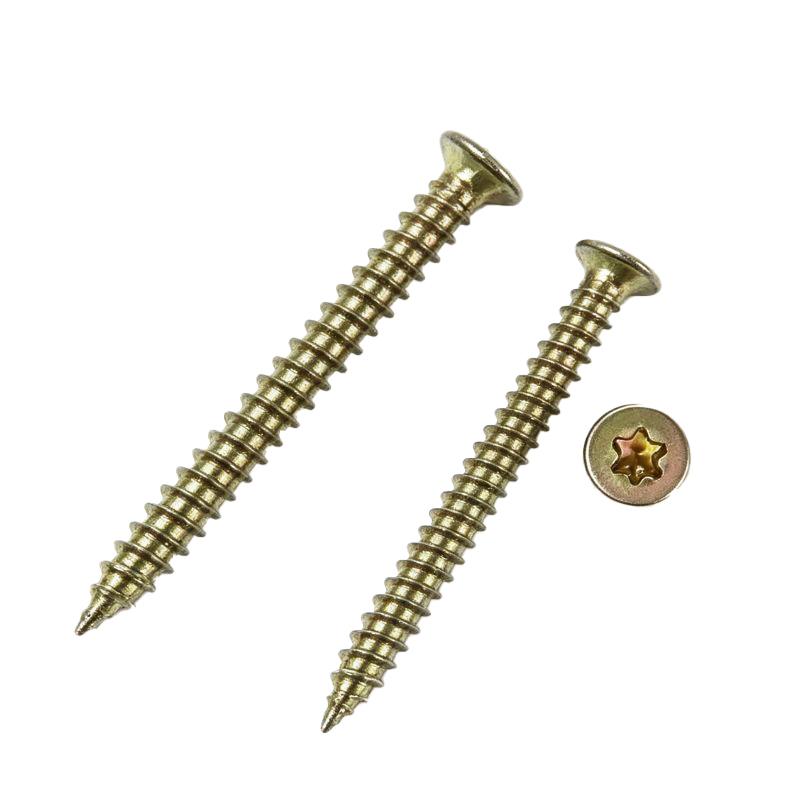

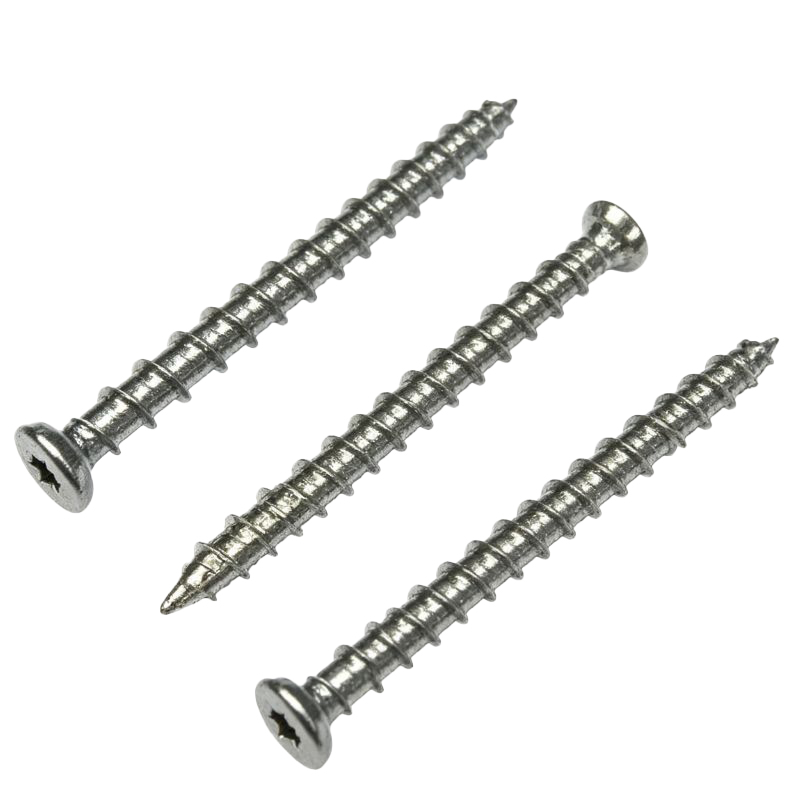

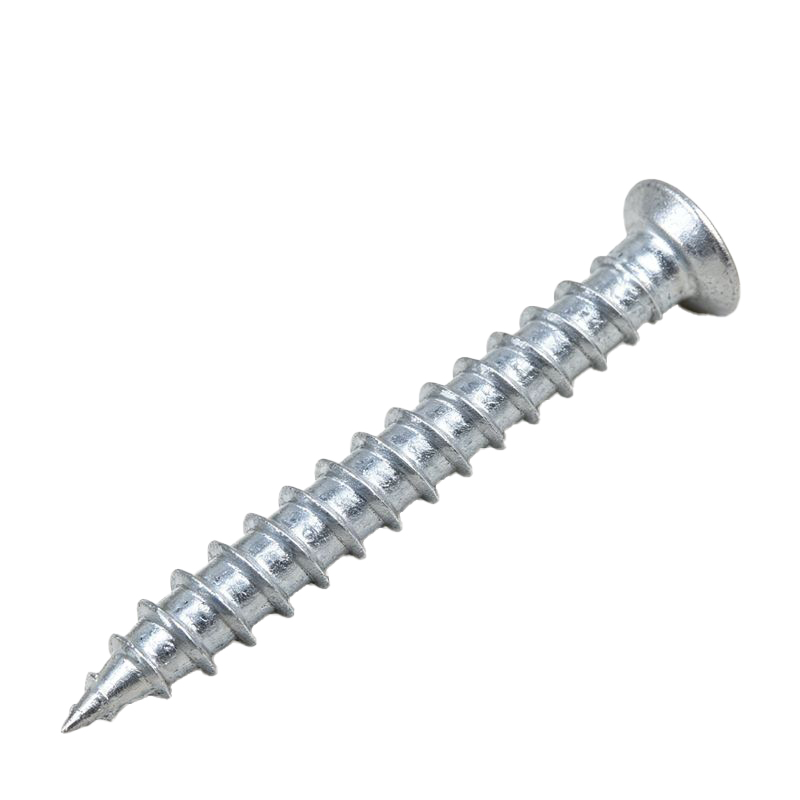

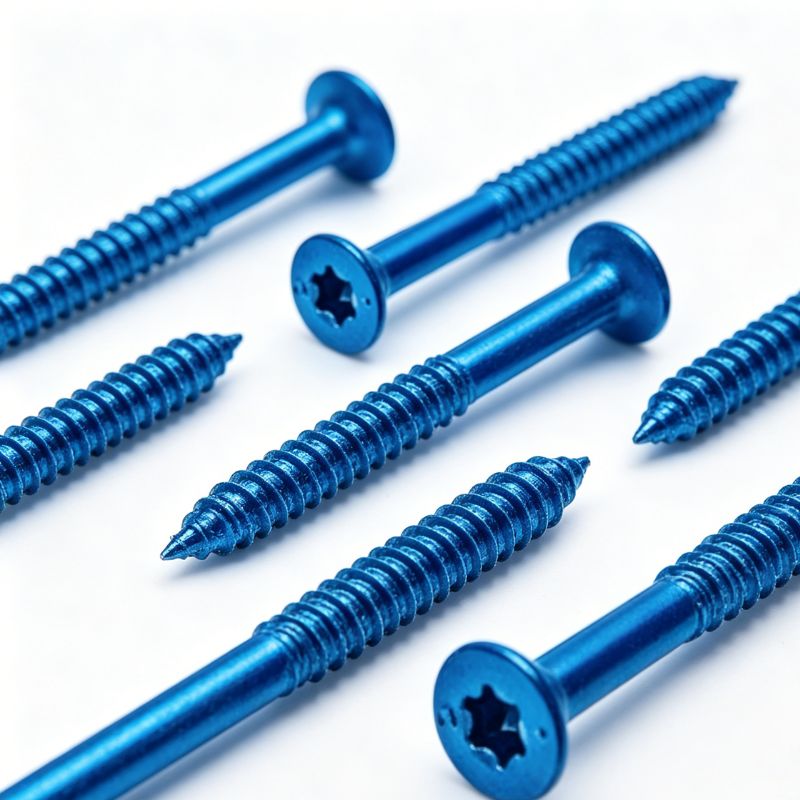

Torx flat head concrete screws are high-performance masonry fasteners designed for secure anchoring into concrete, brick, and block. Featuring a countersunk flat head and Torx (star) drive system, they provide superior torque transfer, reduced cam-out, and a flush installation finish—ideal for structural and finishing applications.
Thread Diameter: 3/16", 1/4", Metric 5.0mm / 6.0mm / 7.5mm
Length: 1" - 6" (Approx 25mm - 152mm)
Standard Drill Bit Recommendation:
standard 82°/90° tapered countersunk angle.
| Drive Type | Head Style | Core Advantages | Recommended Applications |
|---|---|---|---|
| Torx / Star Drive | Flat Countersunk Head | Superior torque transfer, reduced cam-out, improved installation stability, flush finish | Door & window frames, interior finishing, fixtures requiring flush surface |
| External Hex Drive | Hex Washer Head | High torque capacity, strong clamping force, fast installation, suitable for power tools | Structural fastening, outdoor applications, railings, heavy-duty anchoring |
| Phillips Drive | Pan Head / Flat Head | Cost-effective, widely compatible tools, easy installation for general use | Light-duty fastening, temporary installations, non-structural applications |
When selecting the appropriate fastening solution, understanding the differences between drive types is essential. Torx concrete screws provide superior torque transfer and a flush finish for precision applications, while hex head screws deliver maximum clamping force for heavy-duty structural use, and Phillips head options remain a cost-effective choice for light-duty and general fastening needs.
Hefeng Group manufactures torx concrete screws using high-grade carbon steel and advanced heat treatment processes to achieve optimal hardness and durability. Threads are precision-rolled for consistent cutting performance, while surface coatings are applied through automated plating lines to ensure corrosion resistance and uniform finish. Each batch undergoes strict inspection for dimensional accuracy, mechanical strength, and coating adhesion.
Hefeng Group focuses on manufacturing and supplying screws for real construction needs.
Over the past 10 years, we’ve worked with customers across North America, South America, and Southeast Asia, learning that consistency matters most in this business...[ Read More >>]
